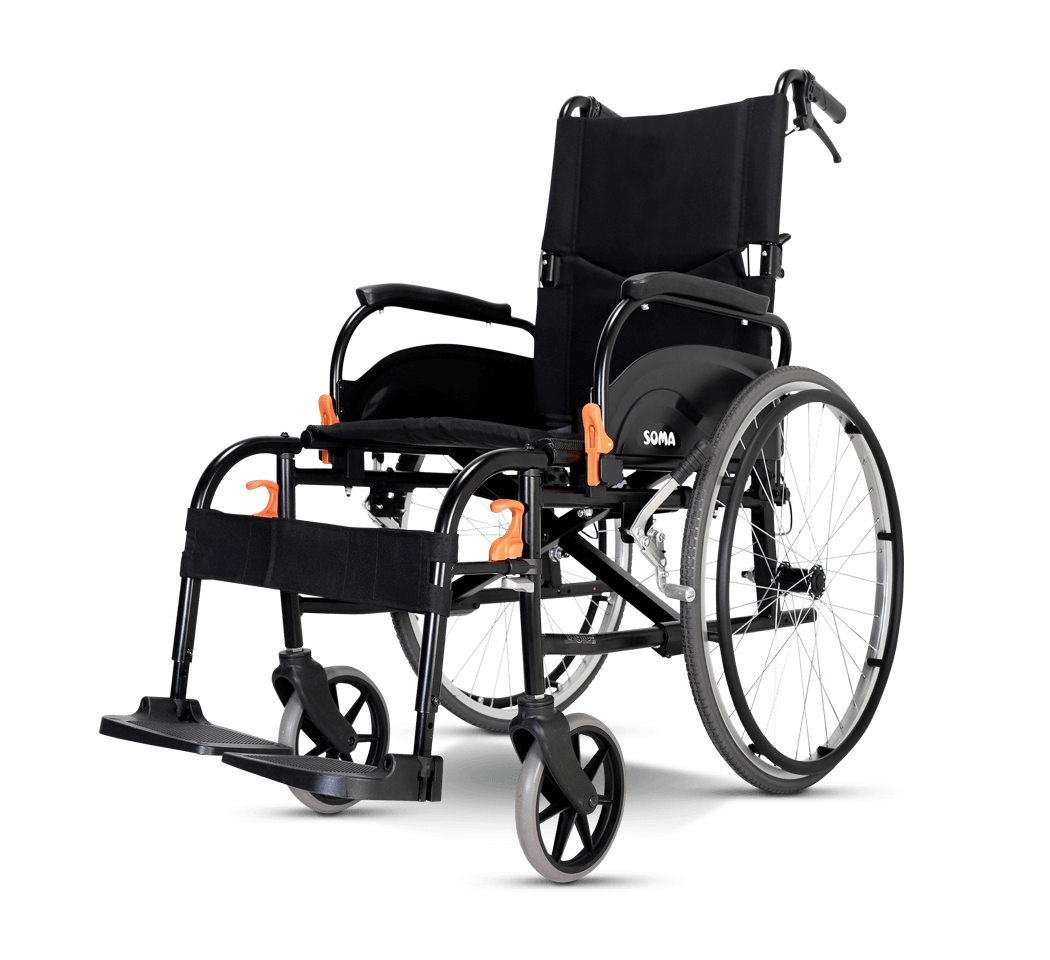

Karma Agile Self Propel Wheelchair

Karma Agile Self Propel Wheelchair
Karma Agile Self Propel Wheelchair - Image 2

Karma Agile Self Propel Wheelchair

VAT Exempt Product – Click to Find Out More

Agile

It’s all about performance, comfort, and style. Meet Agile, the new standard for lightweight wheelchairs.

Improved from the tested ECON series, Agile not only inherited it’s multi-adjustability but also evolved to provide a wider variety of options to serve each individual’s needs.



AGL feature transfer footrest b 2
Please note, We only carry the 18″ depth chairs in stock, Please contact us direct for availability of the other depth chairs.



Product Model Agile (7 x 14)
Nominal Seat Width (inch) 16 18 16 18 20
Nominal Seat Depth (inch) 16 16 18 18 18
Caster x Rear wheel size (in) 7 x 14
Max. User Weight (kg) 125 125 125 125 125
Overall Length (mm) 1025 ~ 1035 1085 ~ 1095
Overall Width (mm) 600 650 600 650 700
Overall Height (mm) 915 / 995**
Folded Length (mm) 710* / 780 760* / 830
Folded Width (mm) 280 280 280 280 280
Folded Height (mm) 735* / 915
Total Mass (kg) 12.3 ~ 12.8 / 12.6 ~ 13.1* / 12.8 ~ 13.3**
Mass of Heaviest Part (kg) 11.1 ~ 11.6 / 11.4 ~ 11.9* / 11.6 ~ 12.1**
Horizontal location of axle (mm) 40 40 40 40 40
Minimum turning radius (mm 805 840 870 845 845
Minimum turning radius without
user (mm)		 745 780 810 905 905
Pivot width (mm) 1230 1250 1280 1390 1390
Seat Plane Angle (X°) 8 8 8 8 8
Effective Seat Depth (mm) 510 510 560 560 560
Nominal Seat Depth (mm) 420 420 465 465 465
Effective Seat Width (mm) 430 480 430 480 530
Seat Surface Height at Front Edge (mm) 480 480 480 480 480
Backrest angle (X°) 14 14 14 14 14
Seat to Backrest Angle (X°) 95 95 95 95 95
Backrest Height (mm) 430 / 510**
Leg to Seat Surface Angle (X°) 116 116 116 116 116
Footrest to seat distance (mm) 380-480
Armrest to seat distance (mm) 220 220 220 220 220
Front location of armrest structure
(mm)		 360 360 360 360 360
Product Model Agile (7 x F22)
Nominal Seat Width (inch) 16 18 16 18 20
Nominal Seat Depth (inch) 16 16 18 18 18
Caster x Rear wheel size (in) 7 x F22
Max. User Weight (kg) 125 125 125 125 125
Overall Length (mm) 1055 ~ 1075 1105 ~ 1125
Overall Width (mm) 610 660 610 660 710
Overall Height (mm) 920 / 1000**
Folded Length (mm) 710* / 770 760* / 820
Folded Width (mm) 280 280 280 280 280
Folded Height (mm) 765* / 920
Total Mass (kg) 12.9 ~ 13.4 / 13.2 ~ 13.7* / 13.4 ~ 13.9**
Mass of Heaviest Part (kg) 11.7 ~ 12.2 / 12.0 ~ 12.5* / 12.2 ~ 12.7**
Handrim diameter (mm) 485
Horizontal location of axle (mm) 40 40 40 40 40
Minimum turning radius (mm 865 865 915 915 915
Minimum turning radius without
user (mm)		 805 805 855 855 855
Pivot width (mm) 1290 1290 1340 1340 1340
Seat Plane Angle (X°) 8 8 8 8 8
Effective Seat Depth (mm) 505 505 555 555 555
Nominal Seat Depth (mm) 415 415 465 465 465
Effective Seat Width (mm) 430 480 430 480 535
Seat Surface Height at Front Edge (mm) 480 480 480 480 480
Backrest angle (X°) 14 14 14 14 14
Seat to Backrest Angle (X°) 95 95 95 95 95
Backrest Height (mm) 430 / 510**
Leg to Seat Surface Angle (X°) 116 116 116 116 116
Footrest to seat distance (mm) 380-480
Armrest to seat distance (mm) 220 220 220 220 220
Front location of armrest structure
(mm)		 360 360 360 360 360
Product Model Agile (8 x 14)
Nominal Seat Width (inch) 16 18 16 18 20
Nominal Seat Depth (inch) 16 16 18 18 18
Caster x Rear wheel size (in) 8 x 14
Max. User Weight (kg) 125 125 125 125 125
Overall Length (mm) 1025 ~ 1035 1085 ~ 1095
Overall Width (mm) 600 650 600 650 700
Overall Height (mm) 935 / 1015**
Folded Length (mm) 750 / 790* 800 / 840*
Folded Width (mm) 280 280 280 280 280
Folded Height (mm) 760* / 930
Total Mass (kg) 12.2 ~ 12.7 / 12.5 ~ 13.0* / 12.7 ~ 13.2**
Mass of Heaviest Part (kg) 11.0 ~ 11.5 / 11.3 ~ 11.8* / 11.5 ~ 12.0**
Horizontal location of axle (mm) 40 40 40 40 40
Minimum turning radius (mm 805 840 890 890 875
Minimum turning radius without
user (mm)		 745 780 830 830 815
Pivot width (mm) 1230 1250 1300 1300 1400
Seat Plane Angle (X°) 8 8 8 8 8
Effective Seat Depth (mm) 505 505 555 555 555
Nominal Seat Depth (mm) 415 415 465 465 465
Effective Seat Width (mm) 430 480 430 480 530
Seat Surface Height at Front Edge (mm) 505 505 505 505 505
Backrest angle (X°) 14 14 14 14 14
Seat to Backrest Angle (X°) 95 95 95 95 95
Backrest Height (mm) 430 / 510**
Leg to Seat Surface Angle (X°) 116 116 116 116 116
Footrest to seat distance (mm) 380-480
Armrest to seat distance (mm) 220 220 220 220 220
Front location of armrest structure
(mm)		 360 360 360 360 360
Product Model Agile (8 x Q24)
Nominal Seat Width (inch) 16 18 16 18 20
Nominal Seat Depth (inch) 16 16 18 18 18
Caster x Rear wheel size (in) 8 x Q24
Max. User Weight (kg) 125 125 125 125 125
Overall Length (mm) 1065 ~ 1070 1115 ~ 1120
Overall Width (mm) 605 655 605 655 705
Overall Height (mm) 940 / 1020**
Folded Length (mm) 850* / 1020 900* / 1070
Folded Width (mm) 280 280 280 280 280
Folded Height (mm) 750 750 750 750 750
Total Mass (kg) 13.9 ~ 14.4 / 14.2 ~ 14.7* / 14.4 ~ 14.9**
Mass of Heaviest Part (kg) 8.6 ~ 9.1 / 8.9 ~ 9.4* / 9.1 ~ 9.6**
Handrim diameter (mm) 535 535 535 535 535
Horizontal location of axle (mm) 0 0 0 0 0
Minimum turning radius (mm 805 810 855 900 900
Minimum turning radius without
user (mm)		 745 750 795 840 840
Pivot width (mm) 1245 1340 1295 1400 1400
Seat Plane Angle (X°) 8 8 8 8 8
Effective Seat Depth (mm) 505 505 555 555 555
Nominal Seat Depth (mm) 415 415 465 465 465
Effective Seat Width (mm) 430 480 430 480 535
Seat Surface Height at Front Edge (mm) 505 505 505 505 505
Backrest angle (X°) 14 14 14 14 14
Seat to Backrest Angle (X°) 95 95 95 95 95
Backrest Height (mm) 430 / 510**
Leg to Seat Surface Angle (X°) 116 116 116 116 116
Footrest to seat distance (mm) 380-480
Armrest to seat distance (mm) 220 220 220 220 220
Front location of armrest structure
(mm)		 360 360 360 360 360

Remark :
※ The seat depth option for 20″ seat width is only 18″.
※ * 430 mm foldable backrest/ ** 510 mm foldable backrest.
※ The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg
※ The actual product specifications may vary according to different configurations.
※ Karma reserves the right to modify information herein without further notice.

Our Price

£365.00
